Descrizione

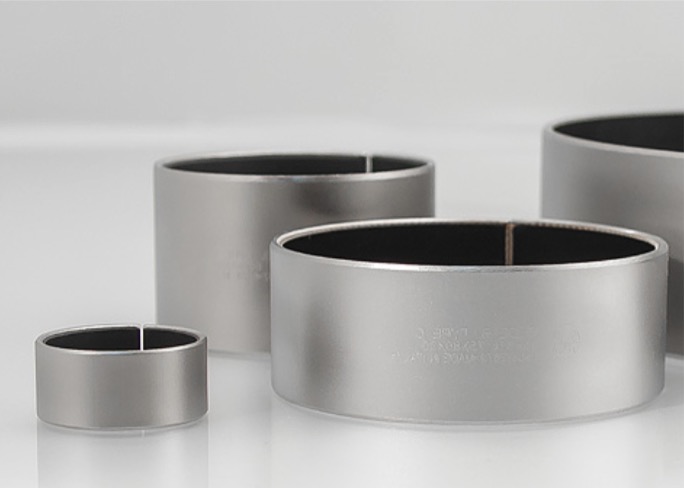

The TF type is a composite multilayer material used in the manufacture of dry self-lubricating Sliding Bearings.
The main parts composing this product are a filled modified PTFE layer (lead free, in accordance to the European Parliament “ELV” directive 2000/53/EC) for the sliding self-lubricating surface, and a special primer used to allow the sintering of the PTFE layer to four types of baking metal layers, like carbon steel, bronze, stainless steel and Inconel 625.
Thanks to its structure, the TF type provides an excellent match between the mechanical strength of the steel, and the low coefficient of friction due to the modified PTFE sliding layer.
This is a product, that can be used in applications with medium loads, and in a clean environment with low levels of abrasive elements such as metal powders. It can also be used with special mineral oils and specific greases such as silicone compounds or lithium soap.
SLIDING BEARING SECTION
GRAPHIC LOAD/SPEED
TF-C . TF-316 . TF-625 . TF-F51
GRAPHIC LOAD/SPEED
TF-316S . TF-625S
PS: the values shown in the graph were determined with a test of constant load, and running for 1000 cycles at three different temperatures: -190 °C, +18 °C and +260 °C
