Descrizione

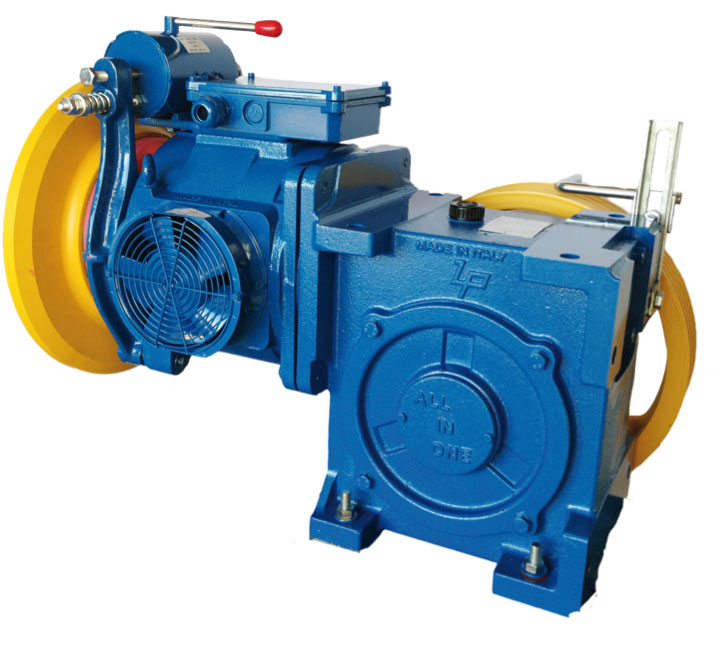

Designed for lifting in the context of standard systems with a capacity of 480daN using a 520 mm pulley. Equipped with design features which facilitate installation in three different positions to fix it to the frame. This layout enables the operator to use the same unit for installation in the right, left and vertical positions.
- Maximum static load: 2400 daN
- Reduction ratio: 1/67; 1/49; 1/39
- Power range 3-6,2 kW 50/60 Hz
- Oil capacity: 3 daN
Technical features:
- extremely compact dimensions
- complete range of motors available, either in ACVVVF version, with inverter control capability, or two-speed AC2 version;
- extremely silent, with levels below 60dBA VDI;
- electromagnetic braking system with exceptional electric and mechanical features
