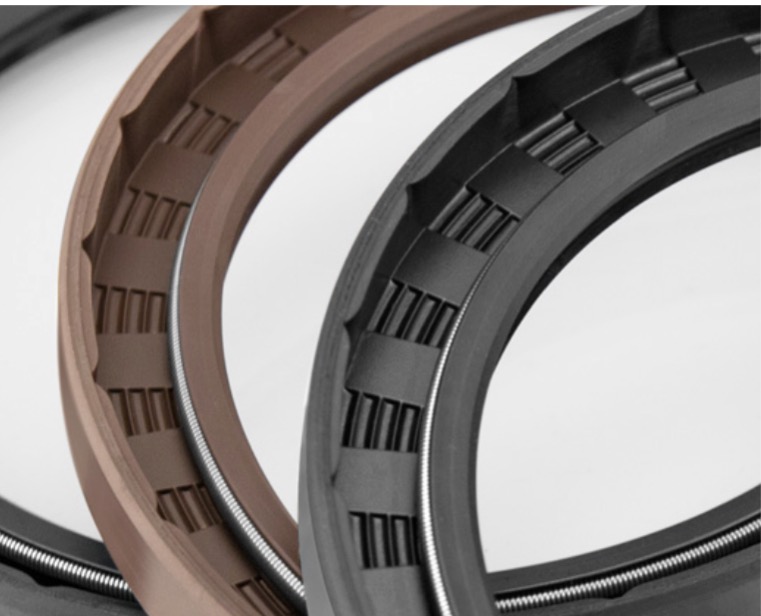

The high pressure oil seal are an indispensable components to guarantee the operation in a lubricated rotating shaft.
The production of the •FP• rotary shaft seals offers a solution to any problem of sealing, with a dedicated design for applications in high pressure environments.
Characteristics of the materials
The •FP• high pressure oil seals are produced according to modern designing and engineering techniques, and with the top performing materials as requested by the using conditions.
Oil seals for extreme pressures
We can supply Oil Seals for use in environments with pressure up to 100 BAR (10 MPa). Our profile GHH-BP is approved for these performance.
GB
MB
Technical Featurese
1
Rubber covered metal insert.
2
Garter spring.
3
Sealing edge made by cutting process.
Seal variant to the G and M type for high pressure.
Guaranteed up to 10 BAR (1 MPa), although in some applications this limit has been greatly exceeded.
Guaranteed up to 10 BAR (1 MPa), although in some applications this limit has been greatly exceeded.
Materials
1
Metal insert:
DC04; AISI 304; AISI 316
DC04; AISI 304; AISI 316
2
Rubber sealing lip without garter spring:
AISI 302; AISI 316; C72 phosphated
AISI 302; AISI 316; C72 phosphated
3
Rubber sealing lip and cover:
NBR; FKM; SIL; HNBR ; EPDM
NBR; FKM; SIL; HNBR ; EPDM
