Descrizione

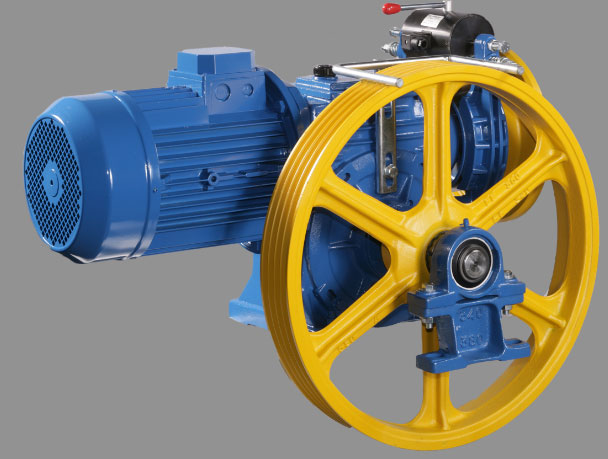

Designed for lifting in systems with a capacity of 800 daN
- A machine designs for lift systems with a capacity of 8 to 10 persons
- complete range of motors available, either in ACVVVF version, with inverter control capability, or two-speed AC2 version;
- extremely silent electromagnetic braking system with exceptional electric and mechanical features
- Maximum static load: 3200 daN
- Reduction ratio: 1/72; 1/62; 1/53; 1/45s; 1/42; 1/37s; 2/37
- Power range 2.1-9.5 kW 50/60 Hz
- Oil capacity: 2,7 daN
- With support
