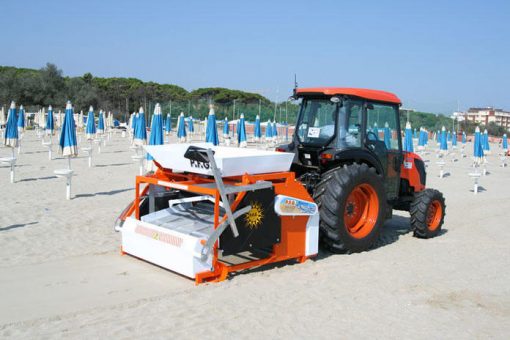

Beach cleaning machine model Balena
FUNCTIONING
The beach cleaner works mechanically taking the motion directly from the PTO of the tractor, to which is connected with the three point linkage, which also adjusts the working depth from 0 to 15 cm for a width of cm. 160.
he load of sand and debris is through a series of nylon spatulas, with a movement transmitted by chains, loading the sand in a first net frame large as the machine and high 80 cm., which functions as a sieve.
Here, sand and debris are conveyed upward to be discharged in another sieve, as the preceding one, with sideways movement, where the debris will reach quickly the rear basket.
When it is full, it can be discharged into the top case by the hydraulic system and directly from the tractor driver seat. Even the top case can be side discharged by the hydraulic system; discharge height: cm 150.
The machine is completely galvanized and painted.
Working performance: 20.000 m2/hour.
Tractor required minimum power: 60 HP
Machine suitable to operate on the seashore.
Width: 1800 mm
Height: 1770 mm
Length: 1880 mm
Weight: 740 Kg
