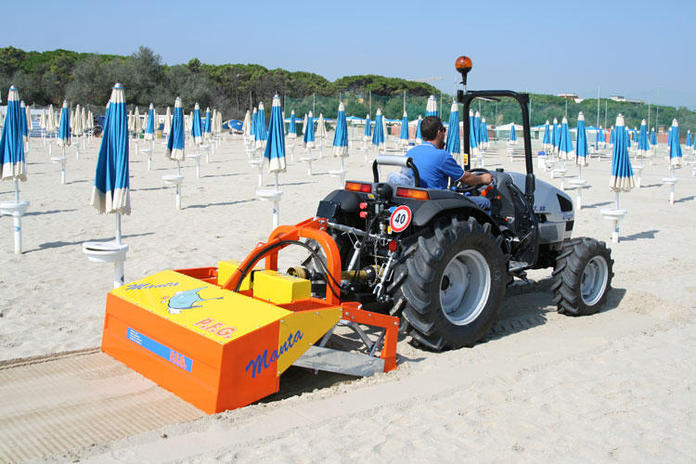

Descrizione
INNOVATIVE load system which consists of two vertical reciprocating sieves that allow to minimize the stress of the machine.
This machine is equipped with a fix blade that collects sand and rubbles at the required depth and for a width of 160 cm. Sand and rubbles are convoyed in a sifter with a vertical movement, so that the rubbles are left in a collector basket meanwhile the sand falls down.
It is supplied with two type of sieve, one with fine mesh and the other with larger mesh, easily interchangeable
Working capacity is 12.000 mt2/h; Working depth from 0 to 15 cm.
MANTA can be successful used also on beaches where there are rubbles of big dimensions
Its structure is completely warm galvanized and painted
Machine is a produced according to the CE standards.
Width: 1600 mm
Heigth: 1400 mm
Length: 1040 mm
Weight: 280 Kg
